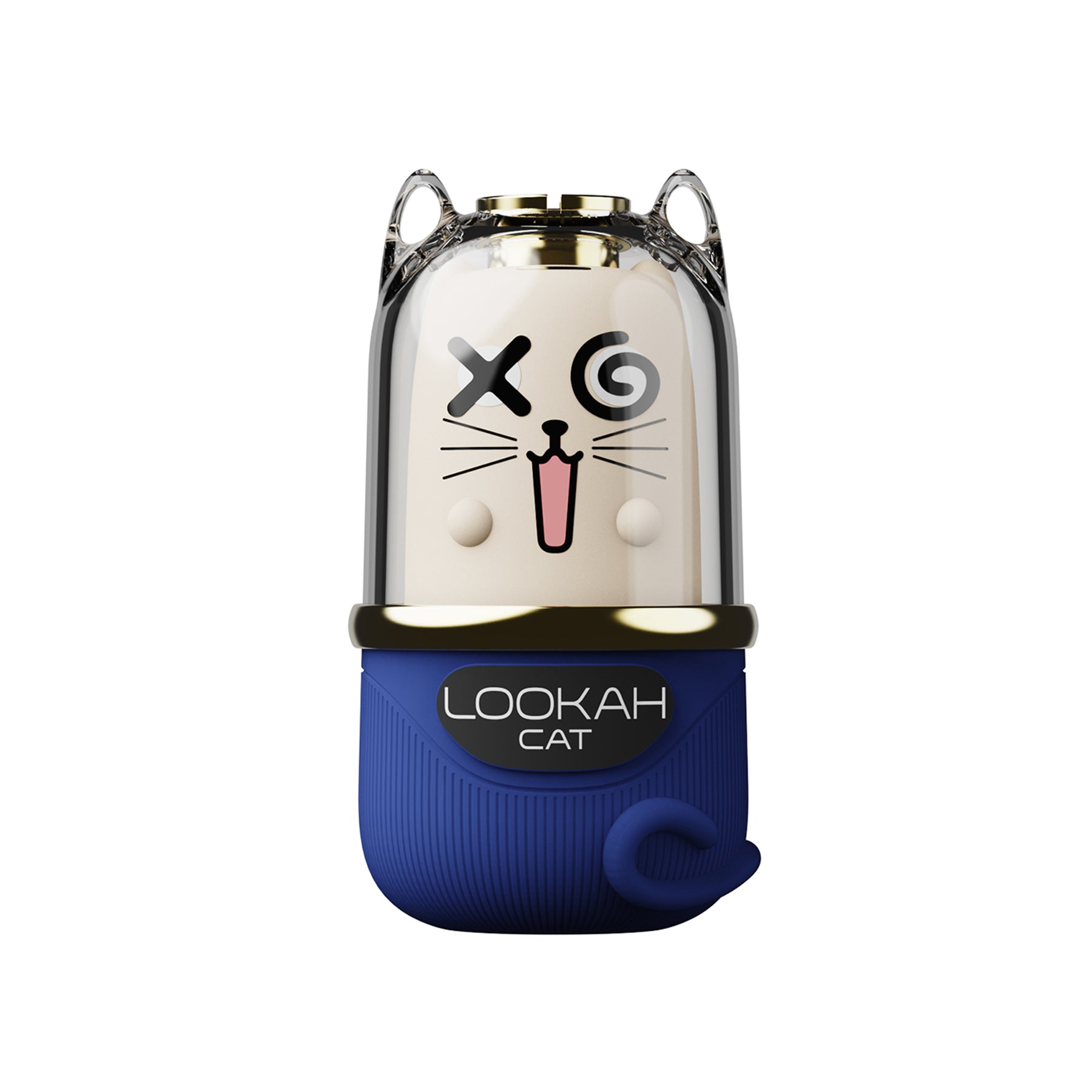

Cat 510 Battery (Display of 6)

SKU:TV10038B

The Lookah Cat 510 Battery is an adorable sidekick packed with features. With a 750mAh battery, 5 voltage levels, 10s preheat, USB-C charging, and universal compatibility, it delivers powerful performance in a playful cat-inspired design.

Portable, durable, and easy to use, it’s the perfect blend of fun and functionality for everyday vaping.

Blue

Cyan

Pink

Purple

Product Features

Battery Capacity: 750mAh
Five voltage settings: 2.4V, 2.8V, 3.2V, 3.6V, and 4.0V
Charging Port: USB-C
Input Voltage: 5V
Charging Current: 800 mA ± 50mA
Operation: Button-Activated
Connection: Standard 510 Thread
Shell Material: Silicone + Glass
Two LED indicator Lights
Two Lanyard Holes
LED ambient lighting

What's Included

6 x Cat 510 Battery (#TV10038)

How to Use

How to use the Lookah Cat Discreet 510 battery?

Using the Lookah Cat discreet 510 battery is as simple as screwing on your cartridge, turning it on, preheating, and puffing.

Step 1: Attach a 510 vape cartridge to your Lookah Cat battery. Gently screw the cartridge onto the device in a clockwise direction until it is snug.

Step 2: Turn the device on by pressing the button five times quickly.

Step 3: Switch between 5 heating settings by double-pressing the power button.

The LED indicator Light displays:

Green: 2.4V (Low)
Blue: 2.8V (Low-Medium)
Purple: 3.2V (Medium)
Cyan: 3.6V (Medium-High)
White: 4.0V (High)

Step 4: To activate the preheat function, press the button three times quickly. You can cancel the preheat function by pressing the button once.

Step 5: Press and hold the button while drawing from the mouthpiece of the cartridge. Release the button when you are done.

Step 6: To conserve battery life, turn off the device when not in use by pressing the button five times quickly.

Charging the Lookah Cat Discreet 510 Battery

The discreet 510 battery life is displayed by the LED indicator light. Once the LED light flash red your battery needs to be recharged.

To start the charging process, plug any USB-C charging cable into the port located at the bottom of the Lookah Cat battery.

Plug the other end of the charging Cable into a computer/laptop USB port or an AC adapter. Make sure that the charging output is 5 volts (never more).

During the charging process, the LED light will display the progress and indicate when the battery is fully charged.

Green LED – 61-100%
Yellow – 31-60%
Red – 1-30% (It's time for a recharge)
